TM-3001 / SR3

Name: TM-3001 / SR3 | BLE & NFC Indoor Asset Tracking Hardware | KCS TraceME
Brand: KCS TraceME

BLE / NFC TAG

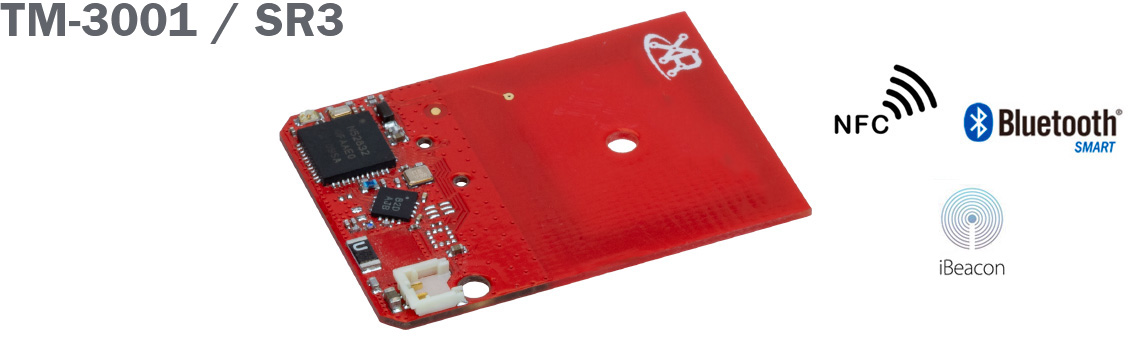

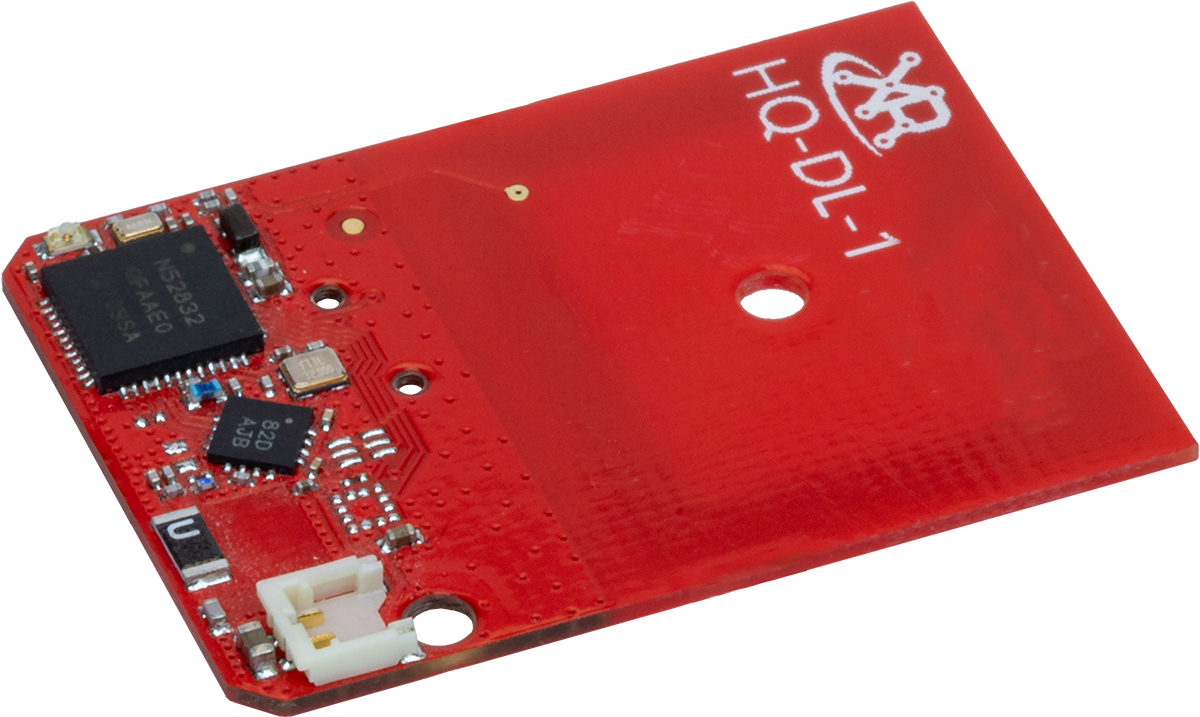

The KCS TraceME TM-3001 / SR3 is equipped with BLE and NFC technology targeted for remotely tracking and tracing a variety of objects and for personal identification.

The KCS TraceME TM-3001 is a mid-range BLE/NFC based track and trace device with basic functionality.

With a minimal size of 35 x 25 mm, weight of only 1.3 grams (exclusive battery)/10 grams (inclusive 550mAh LiPo battery) and a battery lifespan of up to 15 years, the device offers endless OEM integration possibilities.

The functionality of the device can be remotely programmed to fit any job. From basic/general functionality to advanced/low-level application specific detailed functionality.

All the necessary server-side scripts to process and store data from these units are available for registered distributors and resellers. If you prefer not to host data and maps yourself, you can use the hosting services of one of our partner companies.

Related Solutions & Use Cases

Asset Tracking People Tracking Indoor RF Tracking Cold Chain Tracking Construction Tracking E-Bike Tracking

Standard Features

Optional Add-ons

Technical Docs

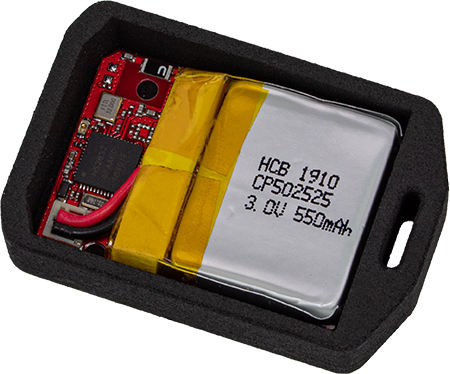

Casing

FAQ

Connectivity	BLE
Connectivity	13.56 MHz. NFC
Sensors	Acceleration sensor
Power	Standby battery lifetime up to 15 years

UI Elements	1 LED
Sensors	Temperature sensor
Enclosure	Robust IP67 housing

Datasheet

Download PDF

Can the TM-3001 / SR3 operate in industrial or extreme temperature environments?

Yes, the device provides highly robust temperature tolerance. It is fully rated to support a wide operating temperature range of -30°C to +85°C, ensuring high stability in critical outdoor conditions.

What is the total weight of the device?

Thanks to the strict miniaturization of internal componentry, the TM-3001 / SR3 retains a highly competitive 'weight: 1.3 g'. It makes it ideal for lightweight tracking and tracing solutions like aerial tags or smart wearables.

What are the major tracking systems and connectivity embedded in this TraceME device?

The TM-3001 / SR3 is highly versatile, bringing cutting-edge tracking technology onto a single PCB. Leading systems natively provided include BLE, and 13.56 MHz. NFC. Ensure you review the 'Optional Add-ons' tab for further sensor extensions.

Is it possible to customize the TM-3001 / SR3 firmware for our OEM needs?

Absolutely. All KCS TraceME hardware can be customized on a granular level. From custom outer casing designs and I/O pin event programming, to tailor-made intelligent firmware behavior.

How does the TM-3001 / SR3 handle active data privacy and security?

TraceME hardware interfaces directly with secure infrastructure without third-party bottlenecks. It natively supports advanced device-side encryption protocols enabling highly private, fully sealed data routing.

Are firmware updates supported over-the-air (FOTA)?

Yes, practically all modern TraceME units are designed with two-way communication supporting crucial FOTA (Firmware Over The Air). This means device behavior and security protocols can be seamlessly updated in the field without retrieval.
