TM-3101 / P2E6
NFC
LoRa
CO₂ and air quality sensor
PIR motion sensor

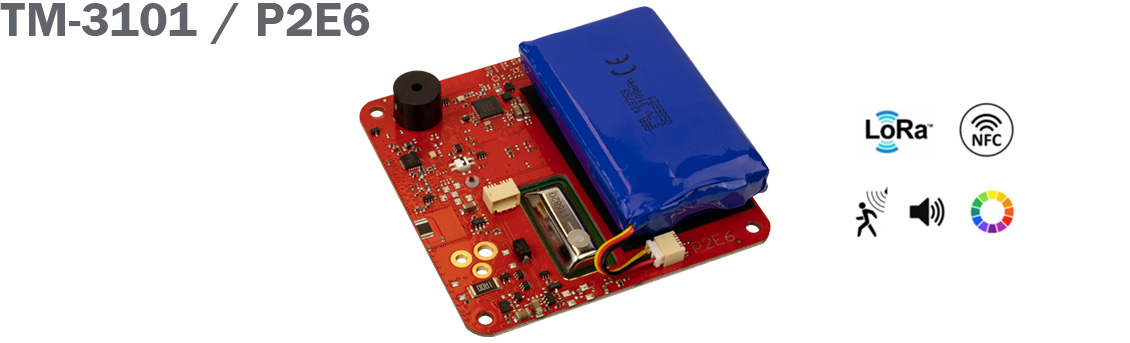

The KCS TraceME TM-3101 / P2E6 is a LoRa-based indoor CO₂ and air quality sensor. It is designed for indoor environment measurement, targeting schools, public buildings and offices.
The TM-3101 is a ‘smart’ and easy to implement indoor air quality monitor equipped with environmental sensors (CO₂ + gases + humidity + temperature + barometric pressure) to monitor the air quality level in a room.
Equipped with LoRa, NFC, 2.4GHz RF-technology PIR motion sensor and calibration free measurement for 5 years, the TM-3101 contributes to a safe and healthy environment.
Related Solutions & Use Cases
Standard Features
Optional Add-ons
Technical Docs

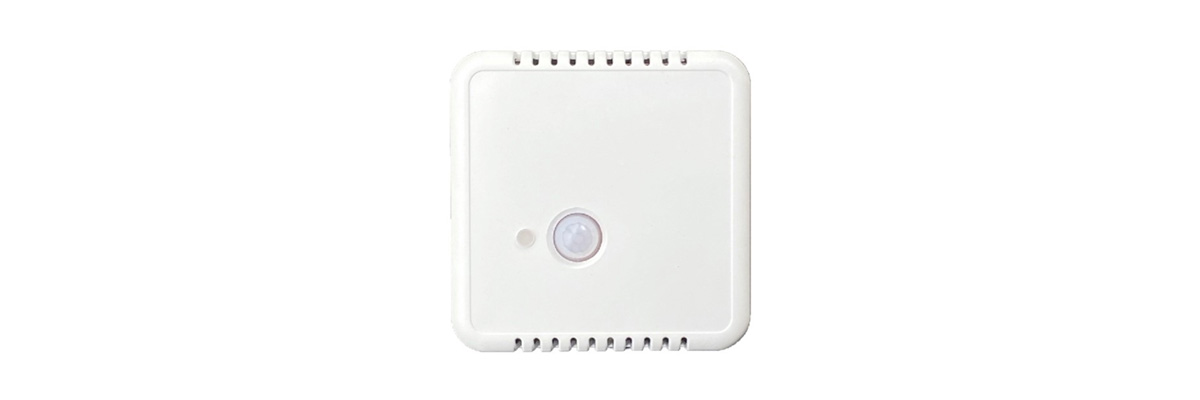

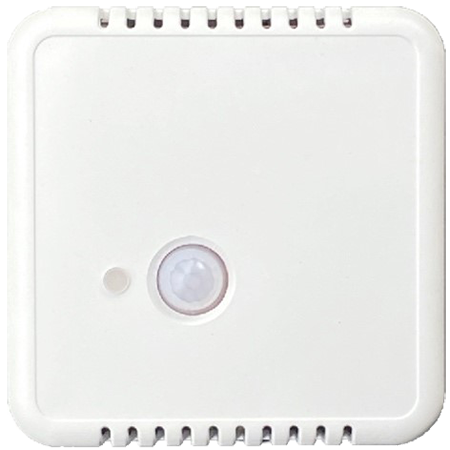

Casing
FAQ
| Sensors | Dual Channel NDIR CO₂ sensor |
| Sensors | Temperature, humidity, barometer sensor |
| LPWAN | LoRa, EU-868MHz. |
| Specification | 2.4GHz proprietary protocol |
| Local Connectivity | NFC |
| Sensors | PIR motion sensor |
| Interface | Multicolor LED and buzzer user interface |
| Power | Standby battery lifetime up to 3.3 years |
| Sensors | Air quality sensor |
| Sensors | Light sensor |
| Specification | Sound detection |
| Local Connectivity | BLE 4.0 |
| Sensors | Extended temperature range |
| Datasheet | Download PDF |
What are the physical dimensions of the TM-3101 / P2E6 target device?
The TM-3101 / P2E6 features an extremely compact hardware footprint measuring approximately 86 x 86 x 25.5mm. This ensures discrete OEM integration and flexible deployment possibilities within space-constrained environments.
Can the TM-3101 / P2E6 operate in industrial or extreme temperature environments?
Yes, the device provides highly robust temperature tolerance. It is fully rated to support a wide operating temperature range of -20 °C ~ + 55 °C, ensuring high stability in critical outdoor conditions.
What power input voltage does the TM-3101 / P2E6 require?
The unit is designed with an autonomous and highly flexible power circuit. It comfortably operates on a power input ranging approximately 5VDC. Additionally, it combines ultra-low active power peaks with deep-sleep states for prolonged lifespan.
What is the total weight of the device?
Thanks to the strict miniaturization of internal componentry, the TM-3101 / P2E6 retains a highly competitive 'weight: 75 g'. It makes it ideal for lightweight tracking and tracing solutions like aerial tags or smart wearables.
What are the major tracking systems and connectivity embedded in this TraceME device?
The TM-3101 / P2E6 is highly versatile, bringing cutting-edge tracking technology onto a single PCB. Leading systems natively provided include Dual Channel NDIR CO₂sensor, and Temperature, humidity, barometer sensor. Ensure you review the 'Optional Add-ons' tab for further sensor extensions.
Is it possible to customize the TM-3101 / P2E6 firmware for our OEM needs?
Absolutely. All KCS TraceME hardware can be customized on a granular level. From custom outer casing designs and I/O pin event programming, to tailor-made intelligent firmware behavior.
How does the TM-3101 / P2E6 handle active data privacy and security?
TraceME hardware interfaces directly with secure infrastructure without third-party bottlenecks. It natively supports advanced device-side encryption protocols enabling highly private, fully sealed data routing.
Are firmware updates supported over-the-air (FOTA)?
Yes, practically all modern TraceME units are designed with two-way communication supporting crucial FOTA (Firmware Over The Air). This means device behavior and security protocols can be seamlessly updated in the field without retrieval.
