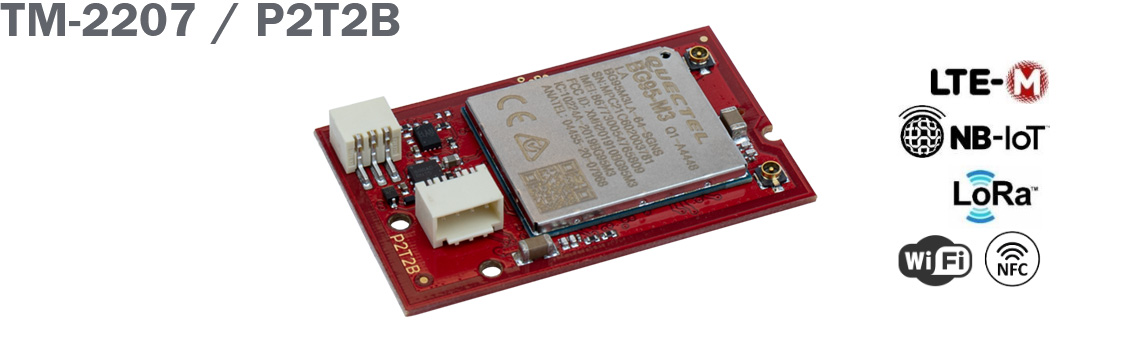

TM-2207 / P2T2B

Best choice for M2M/IoT applications

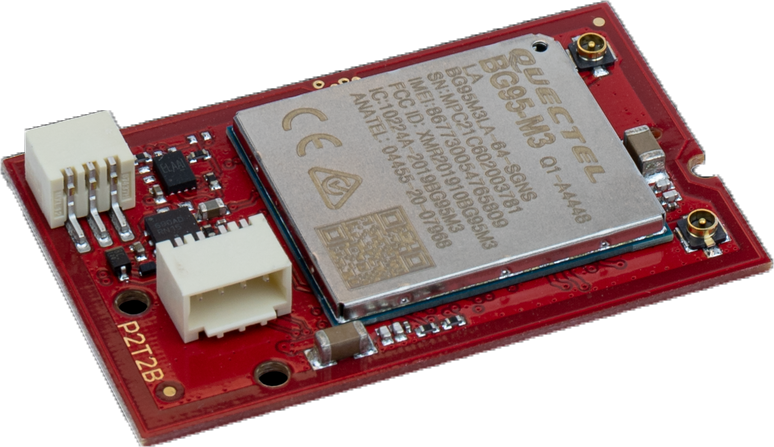

TM-2207 / P2T2B device

The KCS TraceME TM-2207 is a full-featured next generation LoRa-based track and trace device with fully customized functionality.

The customized functionality possibility, compact form factor, great positioning performance and low-power consumption make the TM-2207 the best choice for a wide range of M2M/IoT applications, such as smart waste management, security and asset management..

The device can be equipped with different optional features: LTE Cat-M1 / NB-IoT modem, GNSS, NFC, LoRa, Bluetooth Smart (BLE) and proprietary RF, acceleration-, temperature- and distance sensor (up to 4m) and external I2C sensor interfacing). The device provides reliable, optimized connectivity and coverage for the next generation 4G LTE Cat-M1 and NB-IoT networks and offers seamless fall back to 2G networks.

Differences compared to TM-2206/P2T2A
-Wi-Fi positioning
-External 5VDC only
-Smaller size (43.7 x 27mm)

Standard Features
Optional Add-ons
Technical Docs
Casing
FAQ
ConnectivityExcellent communication options
SpecificationBest choice for a wide range of M2M/IoT applications
DatasheetDownload PDF
OEM PRODUCT - NO CASING AVAILABLE
What are the physical dimensions of the TM-2207 / P2T2B target device?
The TM-2207 / P2T2B features an extremely compact hardware footprint measuring approximately 90 x 67 x 20mm. This ensures discrete OEM integration and flexible deployment possibilities within space-constrained environments.
What power input voltage does the TM-2207 / P2T2B require?
The unit is designed with an autonomous and highly flexible power circuit. It comfortably operates on a power input ranging approximately 31VDC. Additionally, it combines ultra-low active power peaks with deep-sleep states for prolonged lifespan.
What are the major tracking systems and connectivity embedded in this TraceME device?
The TM-2207 / P2T2B is highly versatile, bringing cutting-edge tracking technology onto a single PCB. Leading systems natively provided include Excellent communication options, and Best choice for a wide range of M2M/IoT applications. Ensure you review the 'Optional Add-ons' tab for further sensor extensions.
Is it possible to customize the TM-2207 / P2T2B firmware for our OEM needs?
Absolutely. All KCS TraceME hardware can be customized on a granular level. From custom outer casing designs and I/O pin event programming, to tailor-made intelligent firmware behavior.
How does the TM-2207 / P2T2B handle active data privacy and security?
TraceME hardware interfaces directly with secure infrastructure without third-party bottlenecks. It natively supports advanced device-side encryption protocols enabling highly private, fully sealed data routing.
Are firmware updates supported over-the-air (FOTA)?
Yes, practically all modern TraceME units are designed with two-way communication supporting crucial FOTA (Firmware Over The Air). This means device behavior and security protocols can be seamlessly updated in the field without retrieval.
